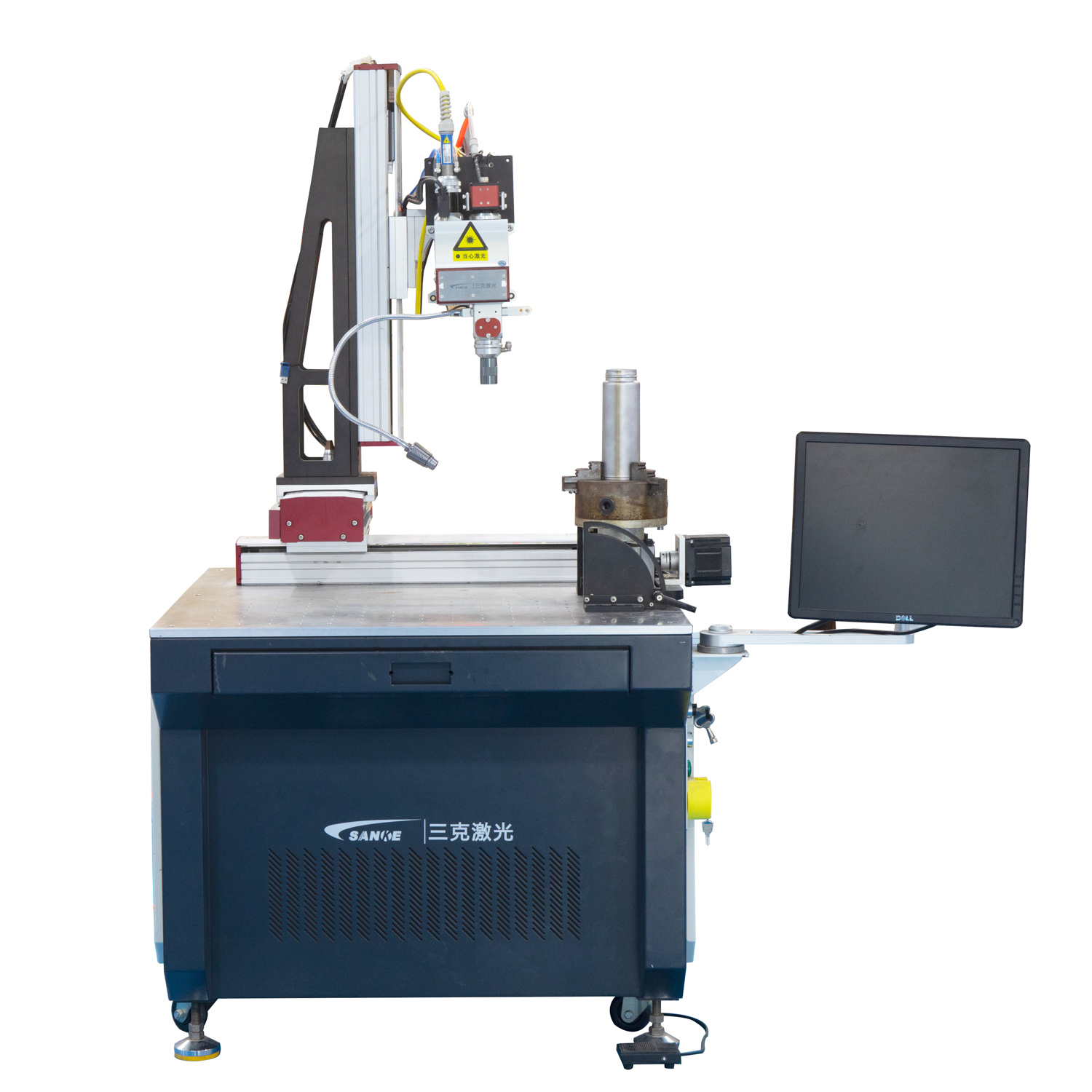

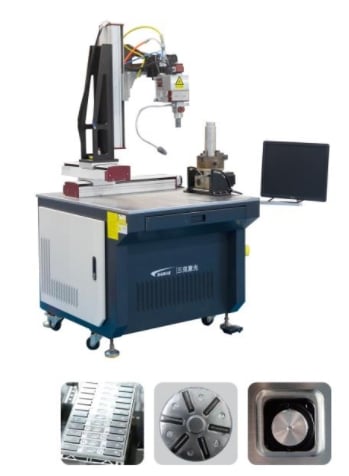

Fiber Laser Automatic Laser Welding System

This machine adopts the galvanometerto focus the laser beam on the workpiece,and the light-weight、high-speed dynamic galvanometer accurately jumps between the weld seams, so that more time can be spent on welding and less time to position the next weld seam, which can increase production and reduce investment costs for customers. Also can choose optional rotarytable, to enables flying welding of multiple cylindrical cell collector plate.

•Fast scanning speed, large range
•Optional extended X,Y axis electric moving platform, which is suitable to use in welding areas beyond the scope of galvanometer scanning.
•The galvanometer Z-axis is electrically adjusted for easily adjusting the focus.
•Optional CCD vision system for easy observation of welding results.

It can be applied to high-efficiency laserspot welding orsealing welding in New Energy vehicles, Medical Devices, Aerospace, Automotive Parts, Instrumentation, 3C, IT Electronics and other products.

Suitable for precision stainless steel, carbon steel sheet, copper foil, aluminum foil, gold, silver and other metals or alloys and also can be applied in a variety of dissimilar materials welding

	Performance/model	SK-FW 2000	SK-FW 3000	SK-FW 4000	SK-FW 6000
	Max.laser power	2000W	3000W	4000W	6000W
	Wavelength	1070±5nm	1070±5nm	1070±5nm	1070±5nm
	Cooling	Water	Water	Water	Water
	Power tunability	10-100%	10-100%	10-100%	10-100%
	Working model	CW	CW	CW	CW
	Power supply	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
	Machine size(L*W*H)	1300*1800*2150mm
